SH-Series Sheet Saw |
SS-Series Sheet Saw |
SH-Series TRAVELING SHEET SAWS
For material thickness 0.25" through 1.25"
Our SH-Series Traveling Sheet Saws provide a one-way cut with below-the-table saw return. All SH Series traveling sheet saws provide a 10 HP, variable-speed saw motor and a 20 inch table travel. Electronic length measurement is standard.
|

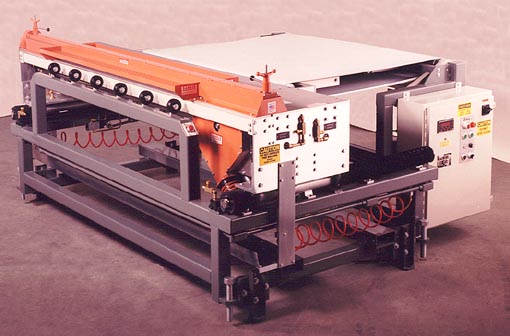

SS-Series TRAVELING SHEET SAWS
For material thickness 0.06" through 0.38"
Our SS-Series Traveling Sheet Saws provide one- or two-way cutting with variable cutting and travel speeds. Table travel is 24 inches.
|
SH-Series
Features & Benefits:
One-way Cut with Below-Table Saw Return
Variable Saw Motor RPM and Cutting Speed
10 HP AC Saw Motor
20" Table Travel
4" Additional Clamp Bar Clearance for Start Up
Dust Collection Included on SH36-SH84
(except for drum)
Dust Collection Hose Away From Saw Included on SH96-SH120
(dust collector not included)
Electronic Length Measurement
Table Height as Required
(42" min.) |
SS-Series
Features & Benefits:
Two-way or One-way Cut
Variable Saw Motor RPM
and Cutting Speed
5 HP AC Saw Motor
24" Table Travel
Variable-speed Carry-off Belt
Dust Collection Included
(except for drum)
Electronic Length Measurement |
|
Specifications For SH Series
| Model |
Max. Sheet Width |
Overall Width |
Overall Length |
| SH36 |
40" |
96" |
82" |
| SH48 |
52" |
108" |
82" |
| SH60 |
64" |
120" |
82" |
| SH72 |
76" |
132" |
82" |
| SH84 |
88" |
144" |
82" |
| SH96 |
100" |
156" |
82" |
| SH102 |
106" |
162" |
82" |
| SH108 |
112" |
168" |
82" |
| SH114 |
118" |
174" |
82" |
| SH120 |
124" |
180" |
82" |
|
Specifications For SS Series
| Model |
Max. Sheet Width |
Overall Width |
Overall Length |
| SS36 |
40" |
96" |
82" |
| SS48 |
52" |
108" |
82" |
| SS60 |
64" |
120" |
82" |
| SS72 |
76" |
132" |
82" |
|
|
